The Zygomatic Implant Solution
Following traumatic accidents, oncology resections or congenital defects, patients present with missing sections of bone and connecting soft tissue. These situations can pose significant physical and psychological effects on the patient.
Southern Implants offers 5 variations of the Zygomatic implant, each Co-Axis® enabled with a 55° prosthetic angulation correction. The choice of technique should consider the ridge crest concavity and sinus anatomy. The ZAGA approach classifies the anatomy into different types to determine the appropriate technique for Zygomatic placement. Depending on the anatomy, Southern’s Zygomatic range offers the clinician the choice of choosing the implant that best matches the ZAGA classification and placement technique.
External Hex Connection
More “forgiving” in
situations of impassive
fit or implant divergence
–
6 mm MSC Section
Decreases bacterial
adhesion and risk
of peri-implantitis
–
Co-Axis® Enabled
55° angled
prosthetic platform
correction
–
High Strength Titanium
Enables exceptional
fatigue strength
functionality
–
Body Variations
To match the ZAGA classification and
placement technique
–
Narrower Apex
Ideal for patients
with smaller anatomy
–
–
–
–
–
–
External Hex Connection
More “forgiving” in
situations of impassive
fit or implant divergence
6 mm MSC Section
Decreases bacterial
adhesion and risk of
peri-implantitis
Co-Axis® Enabled
55° angled
prosthetic platform
correction
High Strength Titanium
Enables exceptional
fatigue strength
functionality
Body Variations
To match the
ZAGA classification
and placement technique
Narrower Apex
Ideal for patients
with smaller anatomy
ZYGIN: Expanding Zygomatic Innovation
Featuring the same body as the ZYGAN® with a narrower implant head, ideal for cases with a highly resorbed maxilla.
Product features:
- A narrow implant head mounted with a narrow fixture mount.
- A narrow (Ø3.4) implant body enhanced with Southern’s proven MSC surface.
- Narrow coronal grooves designed to distribute the load in the cortical region.
- Roughened surface apically providing a roughened surface for where it’s needed most.
- Narrow apical section making it ideal for smaller patient anatomies.

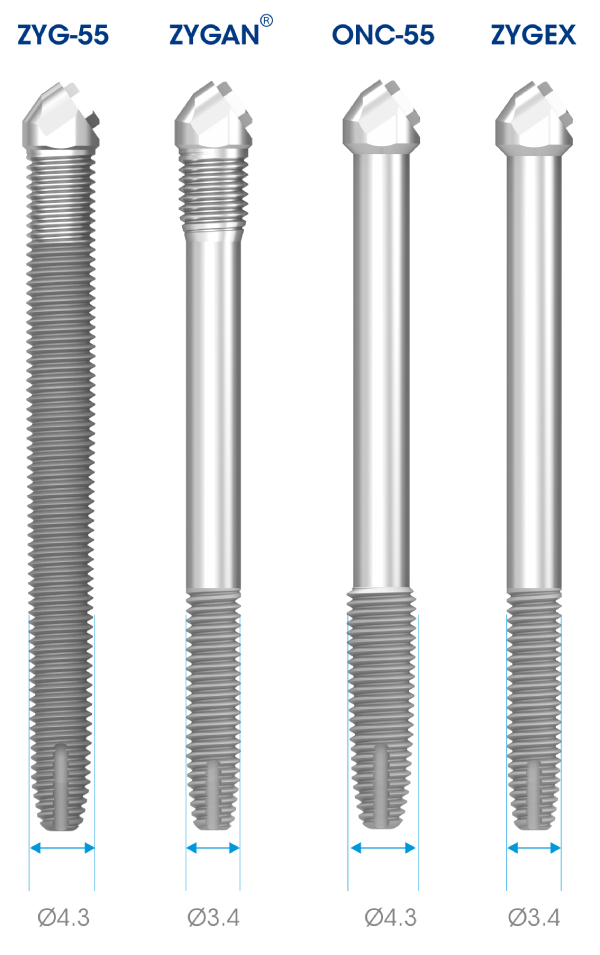

Technical Facts
- Available in lengths ranging from:
- Zygomatic implants: 30 – 60 mm
- Oncology implants: 27.5 – 47.5 mm
- Available in diameters:
- ZYGAN® and ZYGEX: ⌀3.4 mm apex
- ZYG-55 and ONC-55: ⌀4.1 mm
- Co-Axis® enabled: available in a 55° angulation
- Available with a MSC (Machined Surface Coronal) hybrid surface
- SInergy surface: surface roughened by alumina-blasting giving a moderately rough surface with over 20 years of evidence of clinical success
- Utilises ⌀4 mm prosthetics
Surgical Benefits
- Co-Axis® enabled: available in a 55° angulation
- Available with a MSC (Machined Surface Coronal) hybrid surface
- SInergy surface: surface roughened by alumina-blasting giving a moderately rough surface with over 20 years of evidence of clinical success
- The Oncology implant has a 15 mm threaded apex and a coronal machined surface that can be exposed to soft tissue in oncology resections
- The ZYGAN® implant features a narrow apex with a smooth mid-section and MSC threaded coronal region. The ZYGAN® is perfect for patients with smaller anatomy
- The ZYGEX implant offers the same machined area with a narrower apex of 3.4 mm (threaded body diameter)
- Pure high strength titanium enables exceptional fatigue strength (>920 MPa)
- Machined sections for exposed soft tissue and decreased rotations

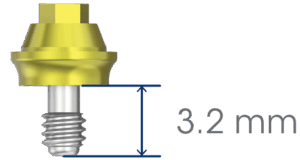

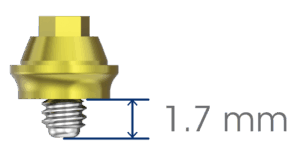

Prosthetic Benefits
- Classic, trusted connections with sought-after modern features
- Forgiving interface for implant divergence
- Widest range of prosthetic options for treatment of partial or full edentulism
- 55° Co-Axis® provide the ideal prosthetic platform for screw-retained restorations
Implant variations to match the patient’s ZAGA classification and the surgeon’s placement technique
Dr Rudi Mukherjee
Southern’s range of Zygomatic implants cater for different situations you might find in the zygoma and crestal bone when dealing with atrophic maxilla cases. The 55° Co-Axis® Zyg...
Southern’s range of Zygomatic implants cater for different situations you might find in the zygoma and crestal bone when dealing with atrophic maxilla cases. The 55° Co-Axis® Zygomatic implant allows the surgeon to achieve great prosthetic emergence resulting in a comfortable and hygienic prosthesis.
Dr Rudi Mukherjee
Dr Stavros Eleftheriou
The narrow apical part allows placement in small sized zygomatic bones, leaving enough space for a second Zygomatic implant. The 55° platform allows good prosthetic emergence, eliminating the need...
The narrow apical part allows placement in small sized zygomatic bones, leaving enough space for a second Zygomatic implant. The 55° platform allows good prosthetic emergence, eliminating the need for angulated multi-unit abutments (along with all the problems that come with their use). The ZYGAN®, ZYGEX and Oncology implants are machine surfaced, except for the apical part which is engaged into the zygomatic bone. This means reduced problems with soft tissue retraction and cleansable implant surfaces if implants are exposed in the oral cavity.
Dr Stavros Eleftheriou
Dr Riz Syed
When dealing with the atrophic maxilla it is important to use the right implant to make the outcome more predictable. The machined implant with the roughened apex ensures great stability and integr...
When dealing with the atrophic maxilla it is important to use the right implant to make the outcome more predictable. The machined implant with the roughened apex ensures great stability and integration whilst reducing the risk of soft tissue irritation and bone loss. The 55° Co-Axis® brings the screw access hole in a more buccal position to allow for a thinner favourable prosthesis.
Dr Riz Syed
Dr Pietro Ferraris
Southern Zygomatic implants have significantly improved our confidence in atrophic maxilla rehabilitation, providing immediate load and function to reduce patients discomfort. Different designs are...
Southern Zygomatic implants have significantly improved our confidence in atrophic maxilla rehabilitation, providing immediate load and function to reduce patients discomfort. Different designs are available to perfectly match patients anatomy and ZAGA class, to achieve predictable long term results.
Dr Pietro Ferraris
Dr Costa Nicolopoulos
Irrespective of the ZAGA classification, I have a tool in my armamentarium with Southern’s site-specific range. A coronally threaded ZYGAN® implant for an intra-maxillary protocol...
Irrespective of the ZAGA classification, I have a tool in my armamentarium with Southern’s site-specific range. A coronally threaded ZYGAN® implant for an intra-maxillary protocol. A coronally non-threaded ZYGEX or Oncology implant for extra maxillary protocols. A fully threaded Zygomatic implant for an intra-sinus ZAGA 0 approach.
Dr Costa Nicolopoulos
